Ninjatrader 8 Gmail Configuration and Setup (Step by Step)

Author: XABCD Team on February 26, 2024
Featured image for “Ninjatrader 8 Gmail Configuration and Setup (Step by Step)”Featured image for “Ninjatrader 8 Gmail Configuration and Setup (Step by Step)”

NinjaTrader Gmail Setup is Different Depending On Your Version

NinjaTrader has made it even easier for people to link up their Gmail. I believe this change was done by google and NinjaTrader had to upgrade to this new method. That's good news for all of us traders.

NinjaTrader Version 8.1+

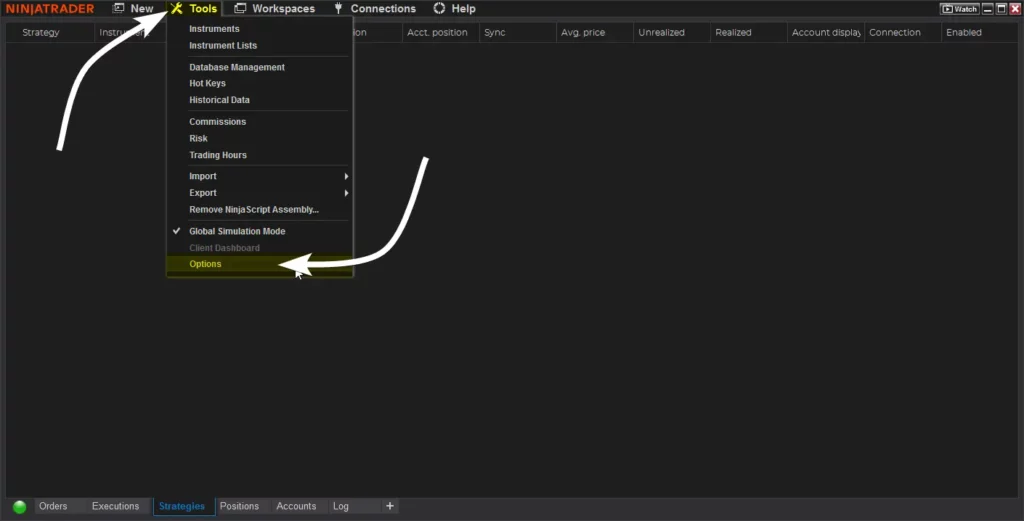

Step 1: Tools -> Options

The first thing you need to do is get into the area where the gmail settings are configured. Click on the Tools -> Options menu items and you'll be one step closer to getting things setup.
NinjaTrader Tool Email

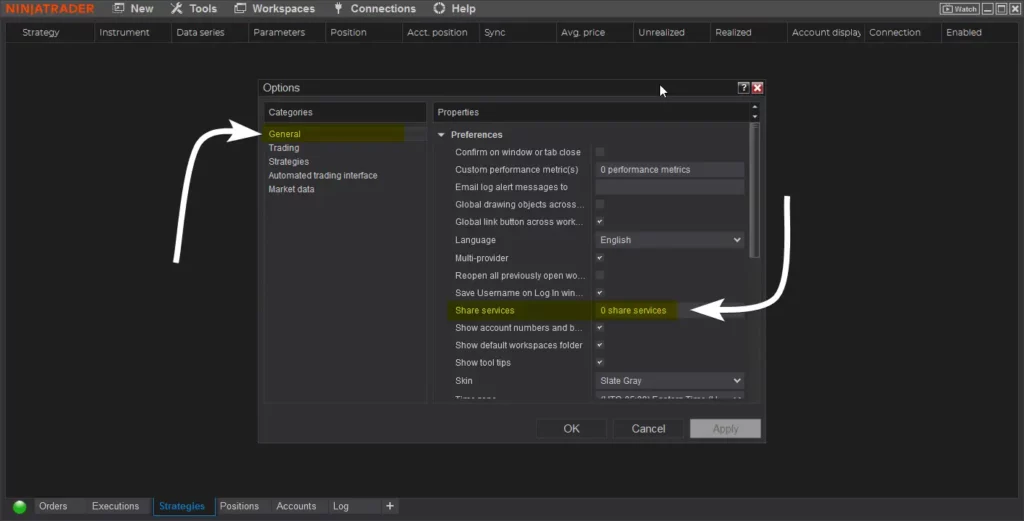

Step 2: General -> Shared Services

Next you will need to configure your General -> Shared Services by clicking inside the box.
NinjaTrader Shared Services

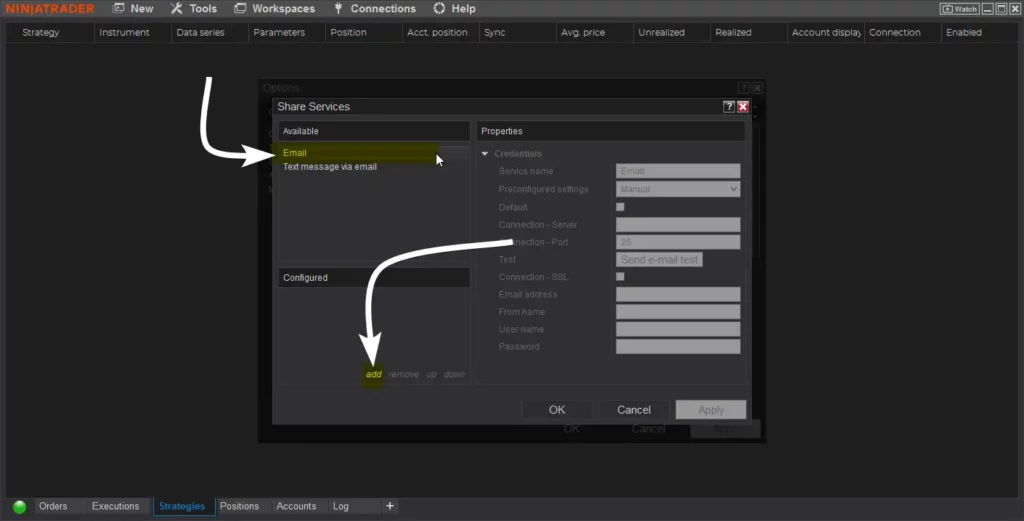

Step 3: Email -> Add

You will then need to select the Email shared service and then click the little add button.
NinjaTrader Email Add

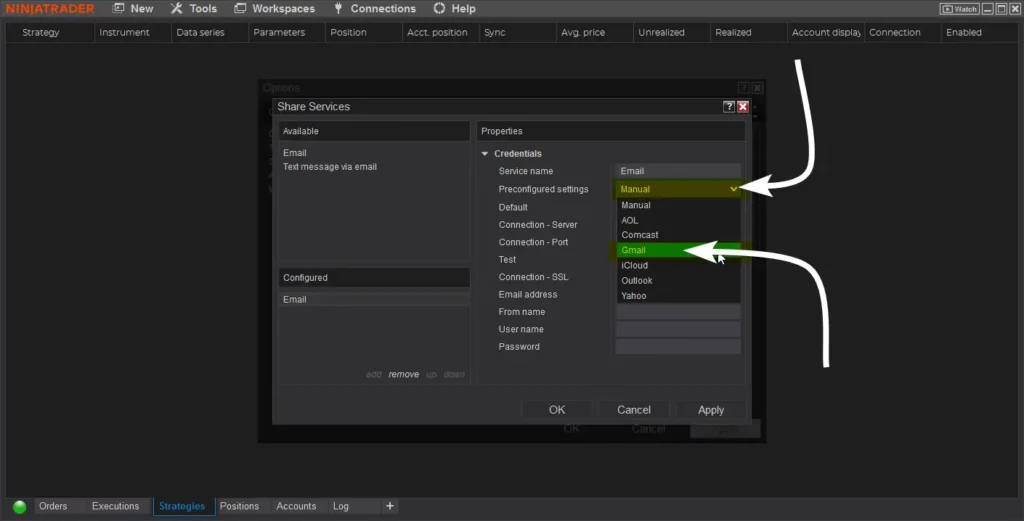

Step 4: Preconfigured settings -> Gmail

Go ahead and select the box beside the Preconfiguration settings and from the dropdown, select Gmail
NinjaTrader Preconfiguration Settings

Step 5: Configure the "From Name"

Now you can type in your From Name and Sign in with Google which will complete the settings. You are now finished and can use your email for alerting.
NinjaTrader Preconfiguration Settings

Step by Step Instructions Below Version 8.1

NinjaTrader 8 Gmail setup is possible regardless to what you have read online, however only if you read and follow these instructions carefully. Below you will find a step by step list of instructions which you should be able to setup your Gmail email alerts in 15 minutes. So if you don't have 15 minutes because of some distractions, bookmark this page and come back later.
  • You will need to do this step in order to allow Gmail to be accessible to your NinjaTrader Platform.

  • You will need to create a Gmail app password which is different than your normal password for the NinjaTrader 8 program to connect.

  • The last step will be configuring the NinjaTrader 8 client.

XABCD Periodic Table

NinjaTrader 8 Gmail Setup Video

Written Instructions Continue below

Configure Email in NT8 (ninjatrader8)

Step 1: NinjaTrader 8 Gmail Setup - What You'll Need

  • Your username and password to get your Gmail setup in NinjaTrader 8 are not your conventional username / password. Please read below in the instructions.
  • You must be using a personal Gmail account and not a business Gmail account.
Your Gmail email and password is not what you will need in order to get your Gmail configured on NinjaTrader 8. The following is a list of information you will need in order to configure your email correctly.

Correct Example: john.smith2482
Incorrect Exampe:
Username: This is the first part of your gmail address. Eg. If your Gmail is your username is going to be "someone" and your going to leave out the
Password: This is not your Gmail password you use to login to your account. NinjaTrader 8 requires you to use a Gmail app password. If you try using your Gmail login password this will not work and your email alerts with NinjaTrader will never work.

Step 2 - Setup Gmail Account

Follow the screenshots

You need to allow gmail to accept emails from NinjaTrader 8 or else it just won't work. To do this you need to enable 2 Setup Authentication Verification.

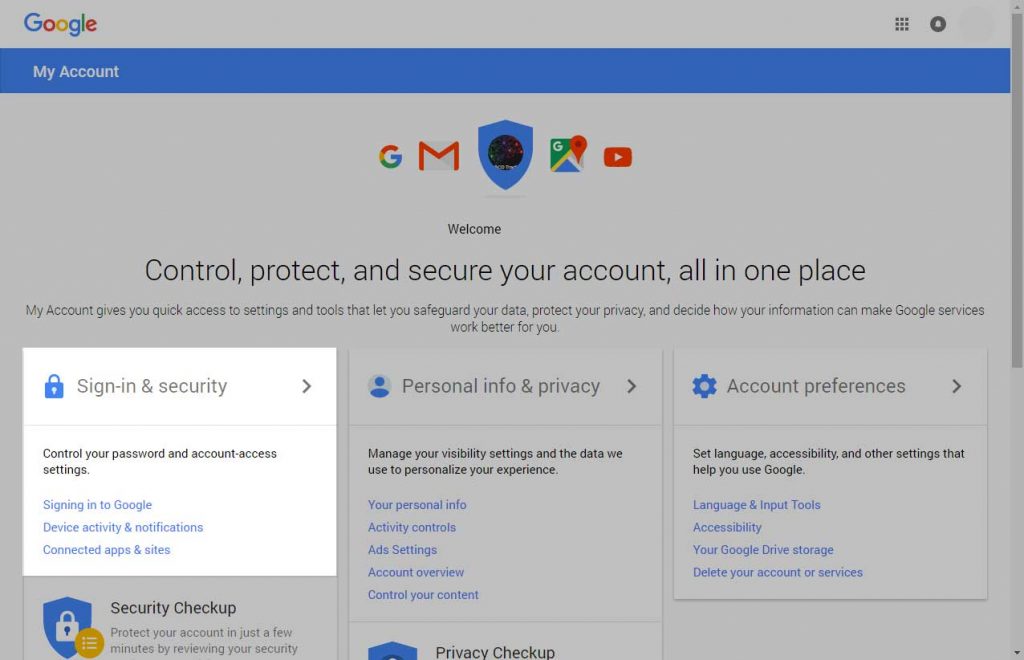

  1. Sign-in to your gmail account page to get to your accounts security settings.
  2. Look for the section called Sign-in & Security which you will then select Signing in to Google.
Gmail My Account Configuration

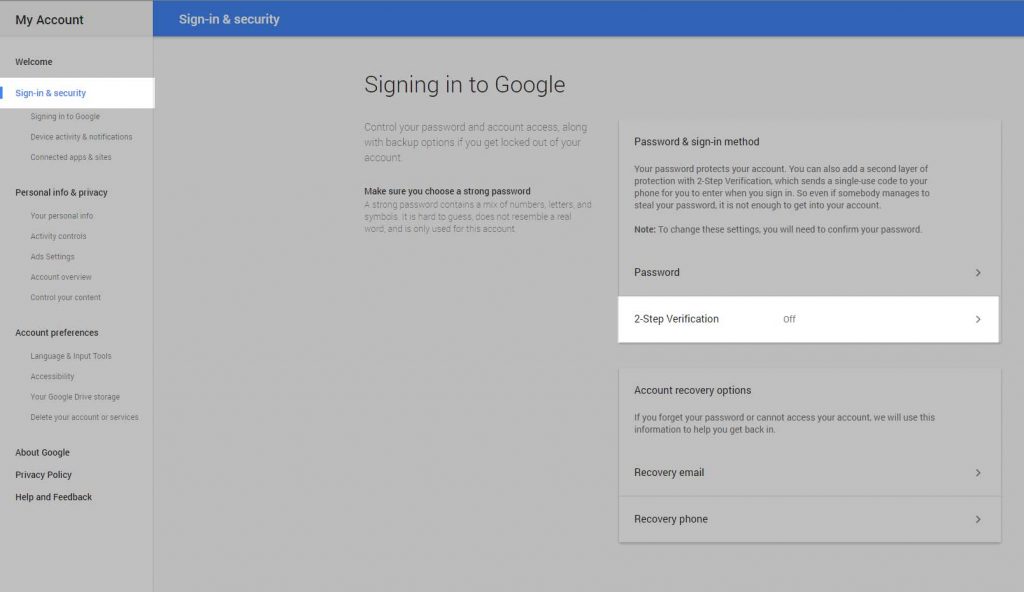

You will see the option called: 2-Step Verification. This will bring you to the 2-Step Verification settings page:
Two Step Verification
Follow the walk through guide the rest of the way and continue onto our next session.

Step 3: Get Your App Password

A Google App Password: Your regular gmail password will not work. This will be a google app password which is separate from your regular password.

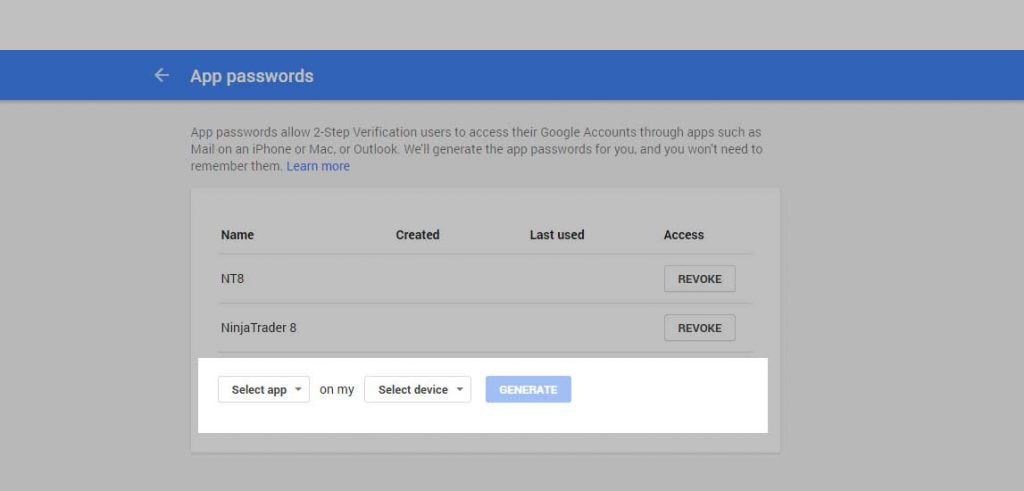

  1. Go here: Google App Password Screen
  2. At the bottom, click Select app and choose the app you’re using. If you see a message saying "The setting you are looking for is not available for your account" then you have not setup your 2 factor verification as per above.
App Password Screen

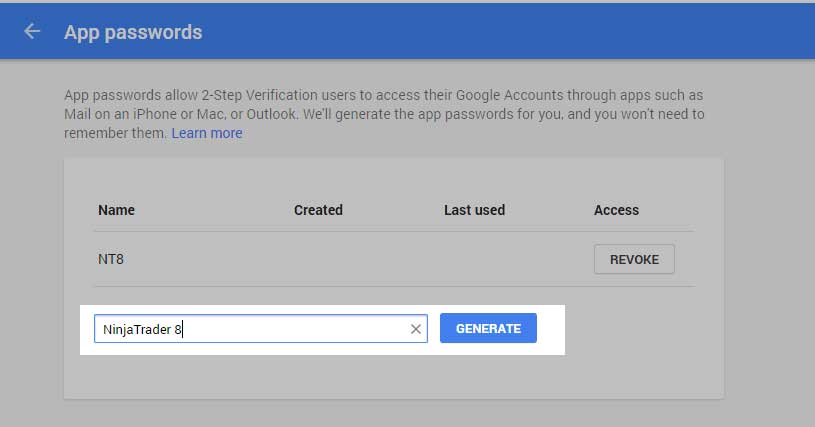

Click Select device and choose the device you’re using. You can now name it, like Ninjatrader 8 Gmail or something of your choice.
App Password Name to NinjaTrader
Click Select device and choose the device you’re using. You can now name it, like Ninjatrader 8 Gmail or something of your choice.

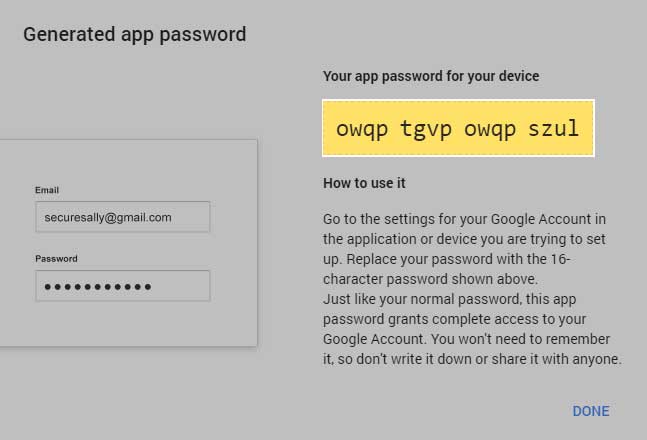

Gmail App Password Yellow Bar
Select Done.

Step 4: Configure The Client

That’s it, you’re done! Do a test email and put in a different address in the dialog box. Then later try with your gmail address.

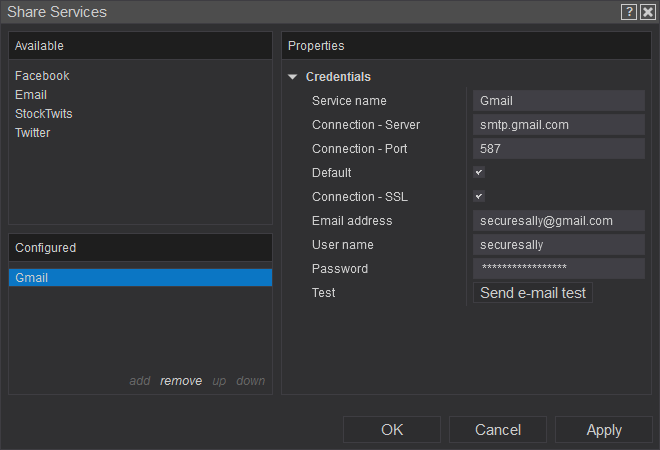

NinjaTrader 8 Gmail Settings

Service name: Gmail
Connection - Server:
Connection - Port: 587
Default: Checked
Connection - SSL: Checked
Email address: Your full Gmail address
User name: The first part of your gmail address
Password: The Gmail App password you generated above

Need Help?

Your NinjaTrader 8 Gmail setup is now complete. Feel free to contact us on the live chat or write a comment below and we would be happy to try and lend you a hand.
